Stainless steel cost-effective corn maize flour powder grinder
machine
Specialty of Stainless steel cost-effective corn maize flour powder grinder
machine
Since it features a simple structure, firm and stable operation and
good crushing effect,
the crushed material can be discharged directly from the grinding
chamber of the host machine and the desired granule size can be
obtained by installing screens with different apertures.
Besides, the whole machine is made of stainless steel.
The inner surface of the enclosure becomes smooth through
processing, thus changing the powder residual phenomenon due to the
coarse inner surface of the previous models.
As a result, the production of sugar can better conform to the state standard and the GMP requirement.
This machine has a very good effect for
grain/sugar/rice/chili/herbal.... powder.
Main Usage
This machine is widely applied as supporting equipment,before fine
crushing process in such trade as pharmaceutical,chemical and
foodstuff ect.
Working Principle
By means of relative motion between movable and fixed fluted discs,
the material is crushed by the impact and friction of the teeth and
the impact among material. The crushed material enters into the
catcher automatically under the effect of rotating centrifugal
force, and the dust is filtered and recovered by dust collector
through a bag. Designed according to GMP standard and wholly made
of stainless steel, this machine has no flying dust during
production, and can improve the utitization rate of material and
reduce the cost of enterprise, thus reaching the international
advanced level.
Technical Parameters
| Model | Main Structural Dimensions(mm) | Capacity | Input Particle Size | Output Particle Size | Machine weight | Speed | Total power |
| L | W | H | Kg/H | mm | mesh | Kg | Rpm/min | KW |
| JB-20 | 650 | 820 | 1500 | 20-150 | <6 | 12-120 | 230 | 4650 | 4 |
| JB-30 | 700 | 900 | 1650 | 30-350 | <10 | 12-120 | 330 | 3800 | 7.5 |
| JB-40 | 750 | 1000 | 1750 | 50-450 | <12 | 12-120 | 430 | 3400 | 11 |
| JB-50 | 850 | 1150 | 1900 | 80-550 | <15 | 12-120 | 700 | 2900 | 18.5 |
| JB-60 | 950 | 1250 | 2150 | 100-800 | <15 | 12-120 | 900 | 2300 | 22 |
| JB-80 | 1100 | 1400 | 2250 | 120-1000 | <20 | 12-120 | 1200 | 1800 | 30 |
| JB-100 | 1300 | 1500 | 2400 | 150-1500 | <20 | 12-120 | 1800 | 1400 | 45 |

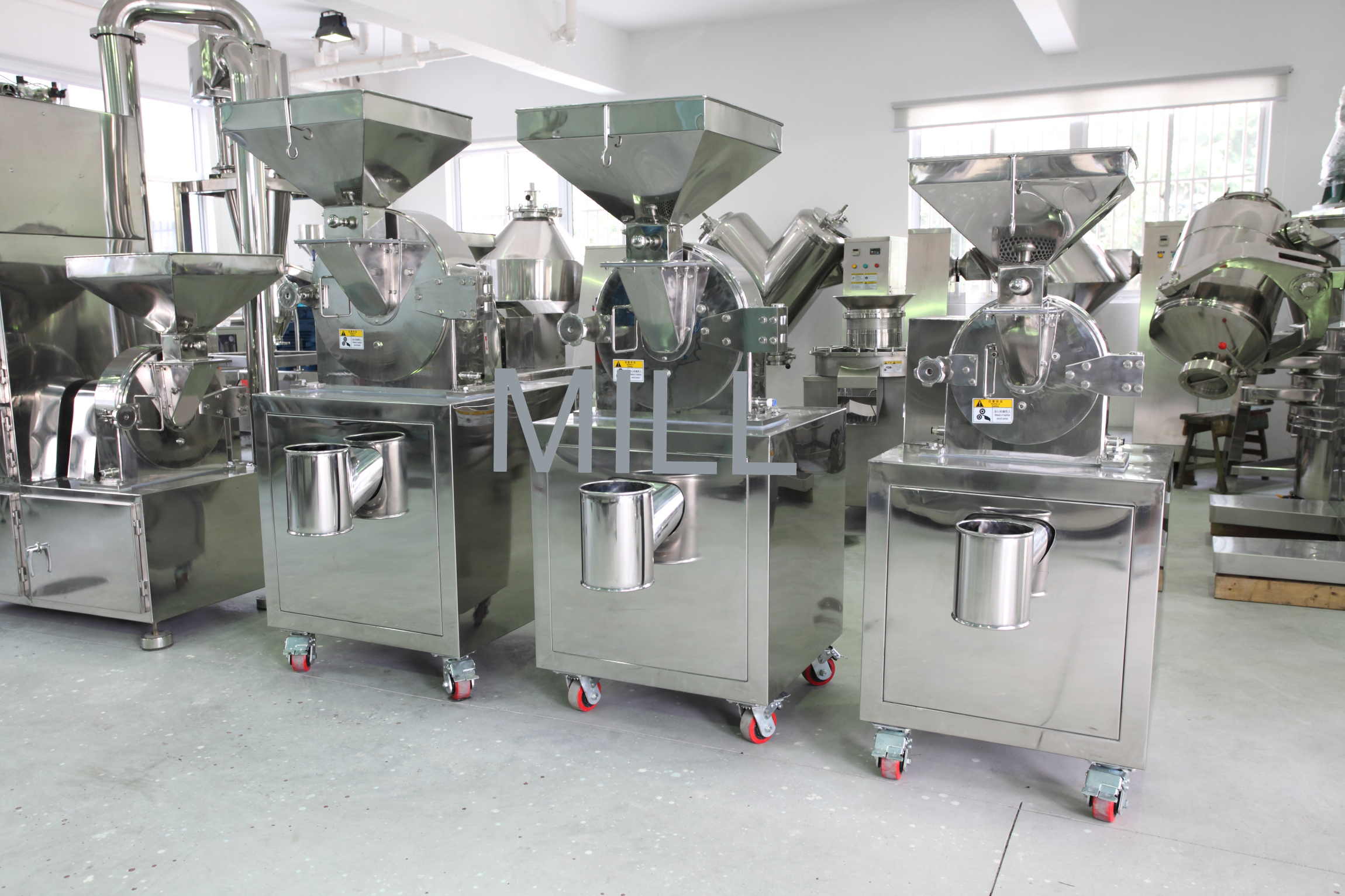

Detail Pictures of JB Series Stainless steel cost-effective corn maize flour powder grinder
machine
Our service
Our company locates at Wuxi city, very near Shanghai City and it
only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history of more than 10 years.
And our factory’s history is more than 15 years.
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc
FAQ:
If you want to send inquriy to me about Stainless steel commercial Spice pulverizer machine,grinding
pulverizer machine from China, could you please tell me?
1) What material you want to grind, is it dry? what is the size of
feed material ?
2) What capacity you expect by spice grinding machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p;
220V...
(We only provide 3P, because our machines are all for industrial
use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel
316, it's OK and please tell us.
Then our communication will be more efficient.
